RAIN UHF
UHF - Ultra-high frequency (865 – 928 MHz)
Distance 10m. UHF applications are those where size, distance and speed need to be tracked accurately. Warehouse & distribution, external door opening and transportation are examples of those types of use case.
Kathrein Antenna - MIRA-100 - Mid Range - ETSI - TNC - IP67
52010082
Kathrein MIRA-100 - Mid Range Antenna RAIN, UHF ETSI version (865-868 MHz) TNC female connection Integration possible in applications where space is limited Wide-open 100° reading zone circular polarisation with very good axial ratio ideal for near-field/fare-field applications up to 200 cm small and robust design high IP67 degree of protection suitable for outdoor us available for Europe, US and RoW
QUAD-Articlenumber: 1805D
Kathrein Antenna - LORA - Low Range - ETSI - TNC - IP67
52010084
Kathrein LORA - Low Range Antenna RAIN, UHF ETSI/FCC version (865-928 MHz) Loop tags + Dipole tags Optimised for fare field tags (ULoRa) TNC female connection Ideal for near-field applications Extremely high selectivity perfect for writing on tags Extremely high interference immunity multi-reader applications High IP67 degree of protection Suitable for outdoor use Minimal dimensions Available for Europe, US and RoW
QUAD-Articlenumber: 1805A
Kathrein Antenna - U-LORA - Ultra Low Range - global - TNC - IP67
52010092
Kathrein U-LORA - Ultra Low Range Antenna RAIN, UHF ETSI/FCC version (865-928 MHz) Loop tags + Dipole tags Optimised for fare field tags (ULoRa) TNC female connection Ideal for near-field applications Extremely high selectivity perfect for writing on tags Extremely high interference immunity multi-reader applications High IP67 degree of protection Suitable for outdoor use Minimal dimensions Available for Europe, US and RoW
QUAD-Articlenumber: 1805

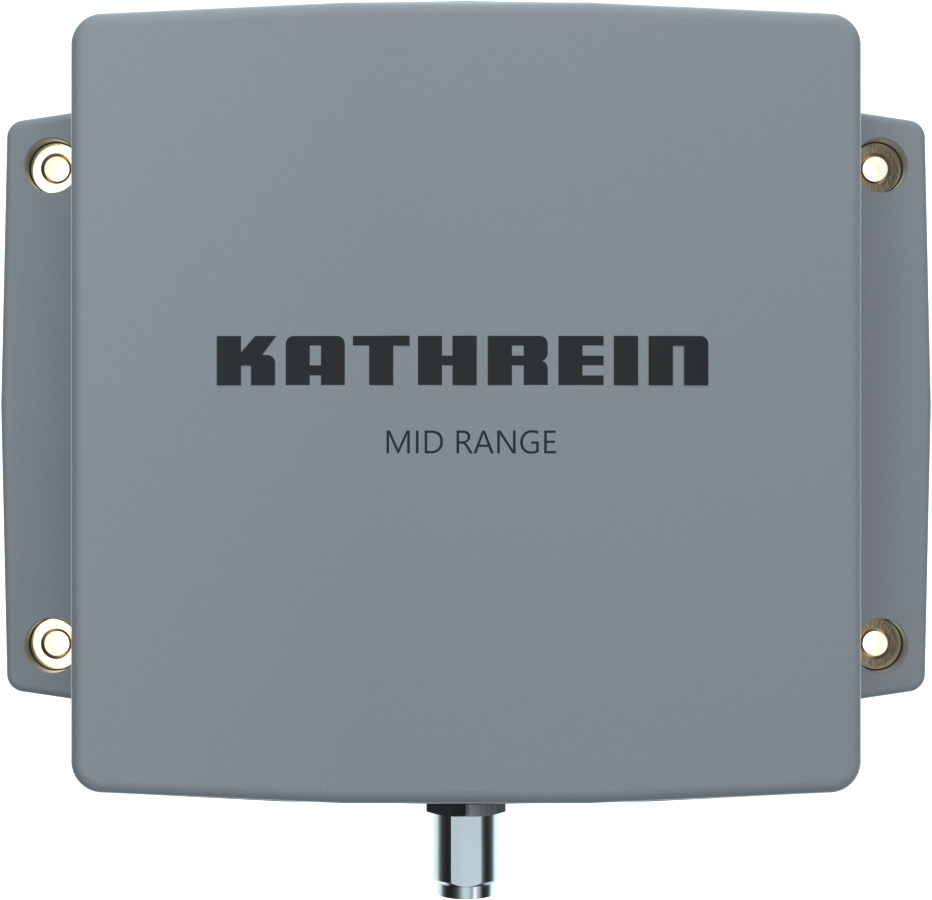

Kathrein Antenna - S-MIRA-100 - Short Mid Range - global - TNC - IP67
52010172
Kathrein S-MRA 100°-Short Mid Range PRO Antenna RAIN, UHF ETSI/FCC (global) version (865-928 MHz) TNC female connection Integration possible in applications where space is limited Wide-open 100° reading zone very robust against influence of metal (S-MiRa) circular polarisation with very good axial ratio ideal for near-field/fare-field applications up to 200 cm small and robust design high IP67 degree of protection suitable for outdoor us available for Europe, US and RoW
QUAD-Articlenumber: 1805E
Kathrein Antenna Cable - TNC/TNC-R - 3m - IP67 - ARU 2xxx / ARU 3xxx / RRU 1xxx / RRU 4xxx
52010174
Kathrein Antenna Cable TNC/TNC-R, 3m, IP67 for ARU 2xxx / ARU 3xxx / RRU 1xxx / RRU 4xxx
QUAD-Articlenumber: 1815A
Kathrein Antenna Cable - TNC/TNC-R - 6m - IP67 - ARU 2xxx / ARU 3xxx / RRU 1xxx / RRU 4xxx
52010175
Kathrein Antenna Cable TNC/TNC-R, 6m, IP67 for ARU 2xxx / ARU 3xxx / RRU 1xxx / RRU 4xxx
QUAD-Articlenumber: 1815B

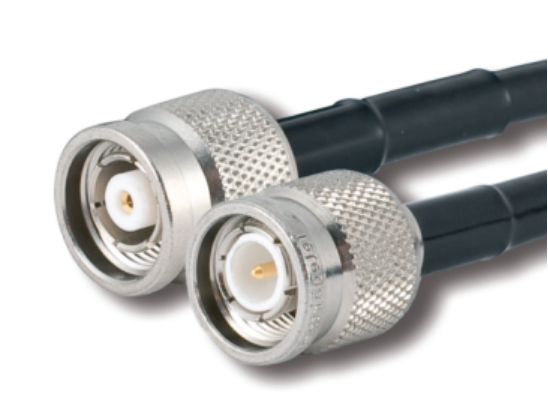

Kathrein Antenna Cable - TNC/TNC-R - 10m - IP67 - ARU 2xxx / ARU 3xxx / RRU 1xxx / RRU 4xxx
52010176
Kathrein Antenna Cable TNC/TNC-R, 10m, IP67 for ARU 2xxx / ARU 3xxx / RRU 1xxx / RRU 4xxx
QUAD-Articlenumber: 1815C
Kathrein Antenna Cable - TNC/TNC-R - 15m - IP65 -
52010177
Kathrein Antenna Cable TNC/TNC-R, 15m, IP65
QUAD-Articlenumber: 1815D
Kathrein Antenna Adapter TNC-TNC (f-m) - for 90° angle for WRA3070
52010243
Antenna Adapter TNC-SMA (f-m) for SMSH-Antenna
QUAD-Articlenumber: 1827S
Kathrein RFID Reader - RRU 4500 - UHF - ETSI - RAIN - without antennas - without power supply - IP67 - Outdoor - TNC
52010288 / 52010448
Kathrein RFID Reader - RRU 4500 RAIN, UHF, ruggedised ETSI version (865-868 MHz) IoT gateway enhanced RF design integrated high secure memory module 4 antenna ports (TNC) +33 dBm port power @KRAI antenna support GPIO (4 x input, 4 x output) PoE+ basic computing module embedded dual-core 800 MHz PC open source Linux OS advanced LED visualisation IP67 outdoor use* type approval for Europe, US and RoW requires antenna(s) and power supply
QUAD-Articlenumber: 1800E
Kathrein RFID Reader - RRU 4560 - UHF - ETSI - RAIN - without antennas - without power supply - IP67 - Outdoor - TNC
52010289
Kathrein RFID Reader - RRU 4560 RAIN, UHF, ruggedised ETSI version (865-868 MHz) IoT gateway enhanced RF design integrated high secure memory module 4 antenna ports (TNC) +33 dBm port power @KRAI antenna support GPIO PoE+ WiFi Bluetooth basic computing module embedded dual-core 800 MHz PC open source Linux OS advanced LED visualisation IP67 outdoor use* type approval for Europe, US and RoW requires antenna(s) and power supply
QUAD-Articlenumber: 1800F
Kathrein RFID Reader - RRU 4570 - UHF - ETSI - RAIN - without antennas - without power supply - IP67 - Outdoor - R-TNC
52010290
Kathrein RFID Reader - RRU 4570 RAIN, UHF, ruggedised ETSI version (865-868 MHz) enhanced RF design integrated high secure memory module 4 antenna ports (R-TNC) +33 dBm port power @KRAI antenna support GPIO PoE+ 2G/3G/4G wireless interface basic computing module embedded dual-core 800 MHz PC open source Linux OS advanced LED visualisation IP67 outdoor use* type approval for Europe requires antenna(s) and power supply
QUAD-Articlenumber: 1800G
Kathrein RFID Reader Unit - ARU 3500 - UHF - ETSI - RAIN - with antenna - without power supply - IP67 - Outdoor - TNC
52010292
Kathrein RFID Antenna Reader Unit - ARU 3500 RAIN, UHF, ruggedised ETSI version (865-868 MHz) high-end RAIN RFID reader with an integrated 65° wide range antenna IoT gateway enhanced RF design integrated high secure memory module 3 antenna ports (TNC) +33 dBm port power GPIO: 3 inputs, 3 outputs PoE+ basic computing module embedded dual-core 800 MHz PC open source Linux OS advanced LED visualisation IP67 outdoor use* type approval for Europe, US and RoW requires antenna(s) and power supply
QUAD-Articlenumber: 1801D
Kathrein RFID Reader - RRU 4500 - UHF - FCC - RAIN - without antennas - without power supply - IP67 - Outdoor - TNC
52010296
Kathrein RFID Reader - RRU 4500 RAIN, UHF, ruggedised FCC version (902-928 MHz) IoT gateway enhanced RF design integrated high secure memory module 4 antenna ports (TNC) +33 dBm port power @KRAI antenna support GPIO (4 x input, 4 x output) PoE+ basic computing module embedded dual-core 800 MHz PC open source Linux OS advanced LED visualisation IP67 outdoor use* type approval for Europe, US and RoW requires antenna(s) and power supply
QUAD-Articlenumber: 1800D

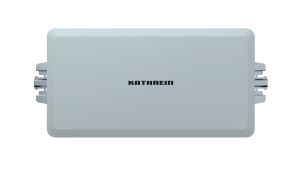

Kathrein Antenna - WRA 7070 - Wide Range - ETSI - TNC - IP67
52010333
Kathrein WRA 7070 - Wide Range Antenna RAIN, UHF ETSI version (865-868 MHz) TNC female connection Ideal for fare-field applications up to 12m Very homogenous reading field Optimal axial ratio Dynamical polarisation switch with KRAI version (for metallic environment with interference) LHCP – left hand circular polarisation RHCP – right hand circular polarisation LH - Linear horizontal LV – linear vertical LED control with KRAI version (for customer feedback) 4 Multi colour LEDs freely programable High IP67 degree of protection Suitable for outdoor us Available for Europe, US and RoW
QUAD-Articlenumber: 1805L
Kathrein Antenna - WRA 7070 - KRAI - Wide Range - ETSI - TNC - IP67
52010335
Kathrein WRA 7070 - Wide Range Antenna +++ KRAI version+++ RAIN, UHF ETSI version (865-868 MHz) TNC female connection Ideal for fare-field applications up to 12m Very homogenous reading field Optimal axial ratio Dynamical polarisation switch with KRAI version (for metallic environment with interference) LHCP – left hand circular polarisation RHCP – right hand circular polarisation LH - Linear horizontal LV – linear vertical LED control with KRAI version (for customer feedback) 4 Multi colour LEDs freely programable High IP67 degree of protection Suitable for outdoor us Available for Europe, US and RoW
QUAD-Articlenumber: 1805M
Kathrein RFID Reader Unit - ARU 2400 - UHF - ETSI - RAIN - with antenna - without power supply - IP40 - Indoor - FAKRA
52010340
Kathrein RFID Antenna Reader Unit - ARU 2400 RAIN, UHF ETSI version (865-868 MHz) embedded computing module open connectors and FAKRA antenna sockets ready for shelf mounting with ITEM 60° antenna integrated 3 antenna ports (FAKRA) +30 dBm port power @KRAI antenna support GPIO: 2 inputs, 2 outputs PoE basic LED visualisation IP40 indoor use type approval for Europe, US and RoW requires antenna(s) and power supply
QUAD-Articlenumber: 1801F
Kathrein RFID Reader Unit - ARU 2400 - UHF - ETSI - RAIN - with antenna - without power supply - IP40 - Indoor - FAKRA
52010348
Kathrein RFID Antenna Reader Unit - ARU 2400 RAIN, UHF ETSI version (865-868 MHz) embedded computing module open connectors and FAKRA antenna sockets ready for shelf mounting with ITEM 60° antenna integrated 3 antenna ports (FAKRA) +30 dBm port power @KRAI antenna support GPIO: 2 inputs, 2 outputs PoE basic LED visualisation IP40 indoor use type approval for Europe, US and RoW requires antenna(s) and power supply
QUAD-Articlenumber: 1801
Kathrein Wall Mount Kit - Outdoor
52010351
Kathrein Wall Mount Kit - Outdoor
QUAD-Articlenumber: 1827
Kathrein Cable - Ethernet - 10m- ARU 3xxx / ARU 8xxx / RRU 4xxx
52010360
Kathrein Ethernet Cable, 10m for ARU 3xxx / ARU 8xxx / RRU 4xxx
QUAD-Articlenumber: 1826A

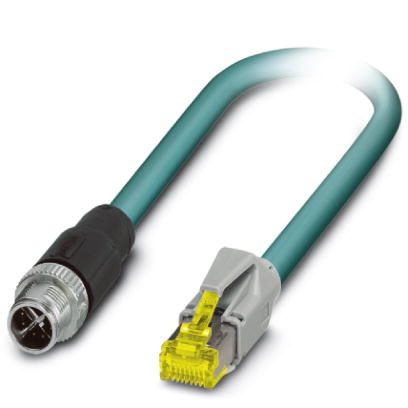

Kathrein Cable - Ethernet - 3m - ARU 3xxx / ARU 8xxx / RRU 4xxx
52010361
Kathrein Ethernet Cable, 3m for ARU 3xxx / ARU 8xxx / RRU 4xxx
QUAD-Articlenumber: 1826

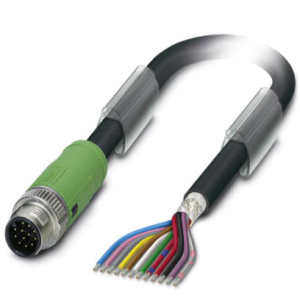

Kathrein Cable - GPIO - 10m - ARU 3xxx / ARU 8xxx / RRU 4xxx
52010362
Kathrein GPIO Cable, 10m for ARU 3xxx / ARU 8xxx / RRU 4xxx
QUAD-Articlenumber: 1826N
